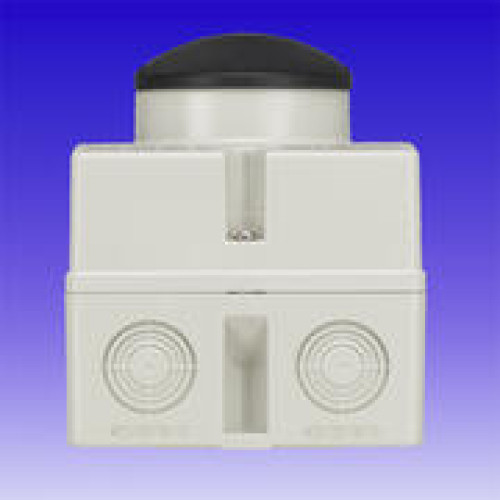

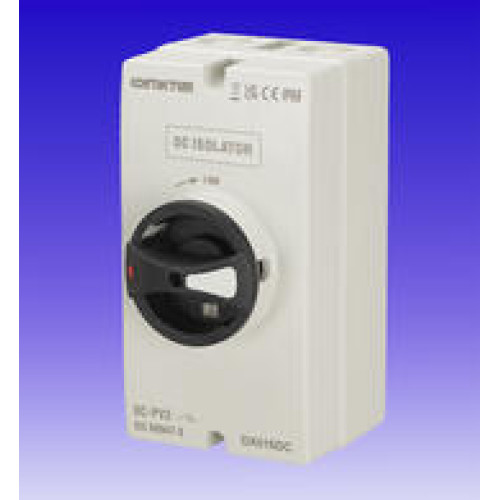

16A 4 Pole DC Isolator - IP66
16A 4 Pole DC Isolator - IP66
In photovoltaic applications, DC isolators are used to manually disconnect solar panels
for maintenance, installation or repair.
The panel needs to be isolated from the AC side, so a manually operated isolation switch
is placed between the panel and the inverter input. This type of switch is called a PV DC isolator
because it provides DC isolation between the photovoltaic panel and the rest of the system.
for maintenance, installation or repair.
The panel needs to be isolated from the AC side, so a manually operated isolation switch
is placed between the panel and the inverter input. This type of switch is called a PV DC isolator
because it provides DC isolation between the photovoltaic panel and the rest of the system.
- Function: isolation, control
- Number of poles: 4
- Rated voltage (Ue): 1200V DC
- Rated current (In): 16A
- Rated insulation voltage (Ui): 1200V DC
- Rated impulse voltage: (Uimp): 8kV
- Mechanical life: 20000 operations
- Screw torque (Nm): 1.2Nm
- Cable size (mm²): 4-16mm²
- Protection level: IP66
- Ambient operating temperature: -25°C to 85°C
- Standards: IEC60947-3, DC-21B
Dimensions:
Height: 180mm
Width: 98mm
Depth inc. switch: 116mm
16A 4 Pole DC Isolator - IP66
- Product Code:E16A4POLEDCISOLATOR-IP66
- Availability:In Stock
-
£32.10
- Ex Tax:£26.75
- Price in Loyalty Points:3210
