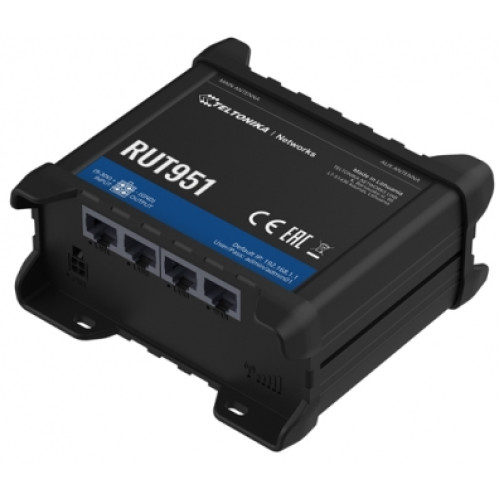

Teltonika RUT951 - Technical Specifications

Mobile

• Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Black/White list: Operator black/white list
• Band management: Band lock, Used band status display
• APN: Auto APN
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough: Router assigns its mobile WAN IP address to another device on LAN
• Multiple PDN (optional): Possibility to use different PDNs for multiple network access and services (not available in standard FW)
• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
• SSID: SSID stealth mode and access control based on MAC address
• WiFi users: Up to 100 simultaneous connections
• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customisable landing page

Ethernet

• WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >25 service providers, others can be configured manually
• Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
• Load balancing: Balance your internet traffic over multiple WAN connections
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

Security/VPN

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• Mobile quota control: Set up custom data limits for both SIM cards
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• Secure Boot: Cryptographic integrity check of the each system boot process (available on device with special order code RUT950U072C0).
• OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• GRE    GRE tunnel
• PPTP, L2TP    Client/Server services can run simultaneously
• Stunnel    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
• DMVPN: Method of building scalable IPsec VPNs
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN
• WireGuard: WireGuard VPN client and server support

MODBUS

• MODBUS TCP SLAVE
• ID range: Respond to one ID in range [1;255] or any
• Allow Remote Access: Allow access through WAN
• Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
• MODBUS TCP MASTER
• Supported functions    01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats    8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
• MODBUS DATA TO SERVER
• Protocol: HTTP(S), MQTT, Azure MQTT
• MQTT GATEWAY
• MQTT gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker
• DNP3
• Supported modes: TCP Master, DNP3 Outstation

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call: Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• MODBUS: MODBUS TCP status/control
• RMS: Teltonika Remote Management System (RMS)

IoT platforms

• Cloud of things: Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx: Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
• Azure IoT Hub: Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

System Characteristics

• CPU: Mediatek MIPS 24Kc 580 MHz
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB, SPI Flash
• FIRMWARE / CONFIGURATION
• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices
• Keep settings: Update FW without losing current configuration

Firmware / Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices
• Keep settings: Update FW without losing current configuration

Firmware Customisation

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Input / Output

• Input: 1 x Digital input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital open collector output, max output 30 V, 300 mA
• Events: SMS, EMAIL, RMS

Power

• Connector: 4 pin industrial DC power socket
• Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31VDC 10us max
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
• Power consumption: < 2 W idle, < 7 W Max

Physical Interfaces (Ports, LEDs, Antennas, Buttons, SIM)

• Ethernet: 2 x RJ45 ports, 10/100 Mbps
• I/Os: 1 x Digital Input, 1 x Digital Output on 4 pin power connector
• Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
• Power: 4 pin DC connector
• Antennas: 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
• Reset: Reset/restore to default button

Physical Interfaces/Specification

• Ethernet: 4 x RJ45 ports, 10/100 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4 pin power connector (available from HW revision 1600)
• Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• Power: 1 x 4 pin power connector

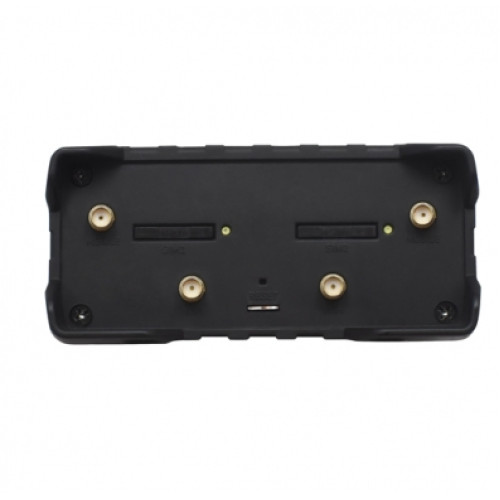

• Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
• Reset: Reboot/User default reset/Factory reset button
• PHYSICAL SPECIFICATION
• Casing material: Aluminium housing, plastic panels
• Dimensions (W x H x D): 110 x 50 x 100 mm
• Weight: 287 g
• Mounting options: DIN rail (can be mounted on two sides), flat surface placement

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE/RED, UKCA, CB
• EMI IMMUNITY
• Standards: EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN 61000-4-3:2020
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014+A1:2017
• CS: EN 61000-4-6:2014
• DIP: EN IEC 61000-4-11:2020
• RF Standards: EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1
• SAFETY Standards: EN IEC 62311:2020 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020
