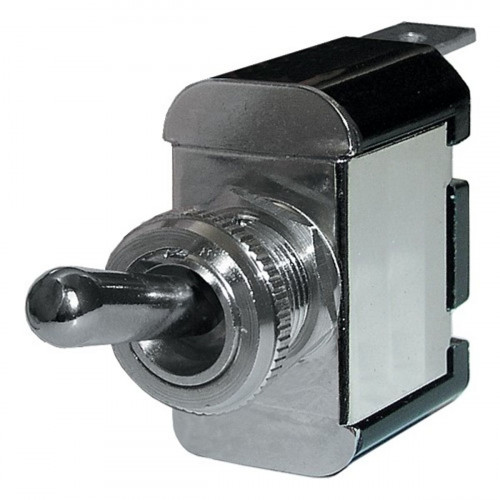

Specially manufactured for use in WeatherDeck™ Waterproof Panels Rated IP67 (temporary immersion for 30 minutes) when mounted with a WeatherDeck™ Toggle Switch Boot (8-24138).
Nickel-plated brass & phenolic non-corrosive construction.

Specifications Single Pole:
Rating: 250 Volts AC: 10 Amps
Rating: 125 Volts AC: 15 Amps
Rating: 12 Volts DC: 15 Amps
Terminal Size: 0. 25" (6. 35mm)
Terminal Type: Quick Connect Tab
